Combiner Box Monitoring

The combiner box monitoring system provides monitoring and management for each device in a solar power generation system. It can monitor the status of surge protectors and circuit breakers without an external power supply. The system supports RS485 communication, DC arc fault detection, and shunt trip functionality.

User-Friendly Interface

Equipped with an LCD screen, the system provides real-time display of current, voltage, and temperature, ensuring intuitive operation and simplified maintenance.

Advanced Safety Protection

Built with a robust safety mechanism, the system supports remote alarms and optional arc-fault detection to deliver enhanced protection for PV power plants.

Rapid and Convenient Deployment

CE-EMC certified, the system supports RS485 or industrial wireless data transmission and connects directly to the bus-bar, eliminating the need for an external DC power supply.

Certified Arc Detection

UL1699B certified, the system meets stringent industry standards for arc-fault detection, helping prevent fires and safeguarding equipment.

Streamlined Installation

Designed for direct bus-bar connection, the system removes the requirement for external DC-DC power conversion, simplifying setup and reducing installation time.

Exceptional Stability

Featuring an enclosed PCB with a carefully engineered layout, the system ensures high stability by minimizing interference and optimizing component performance.


Product Advantages

14 Years of  AFCI Expertise

14 Years of AFCI Expertise

String-Level Arc  Detection

String-Level Arc Detection

Supports HPLC  Communication

Supports HPLC Communication

Supports IV Curve  Scanning

Supports IV Curve Scanning

Technical Parameter

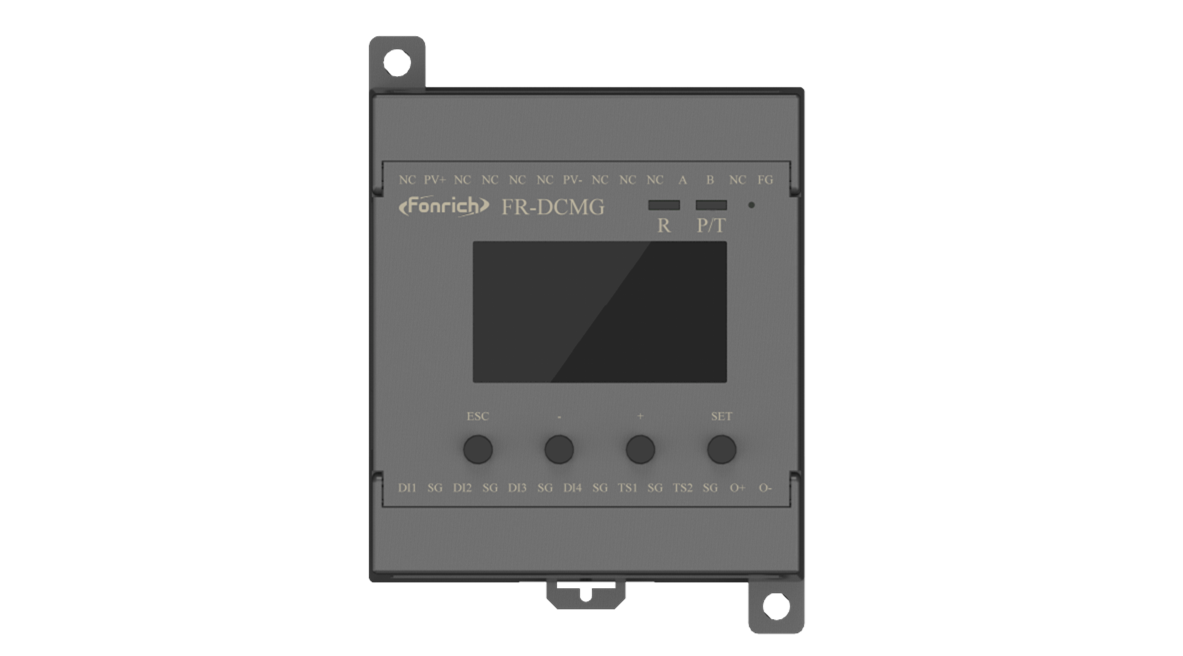

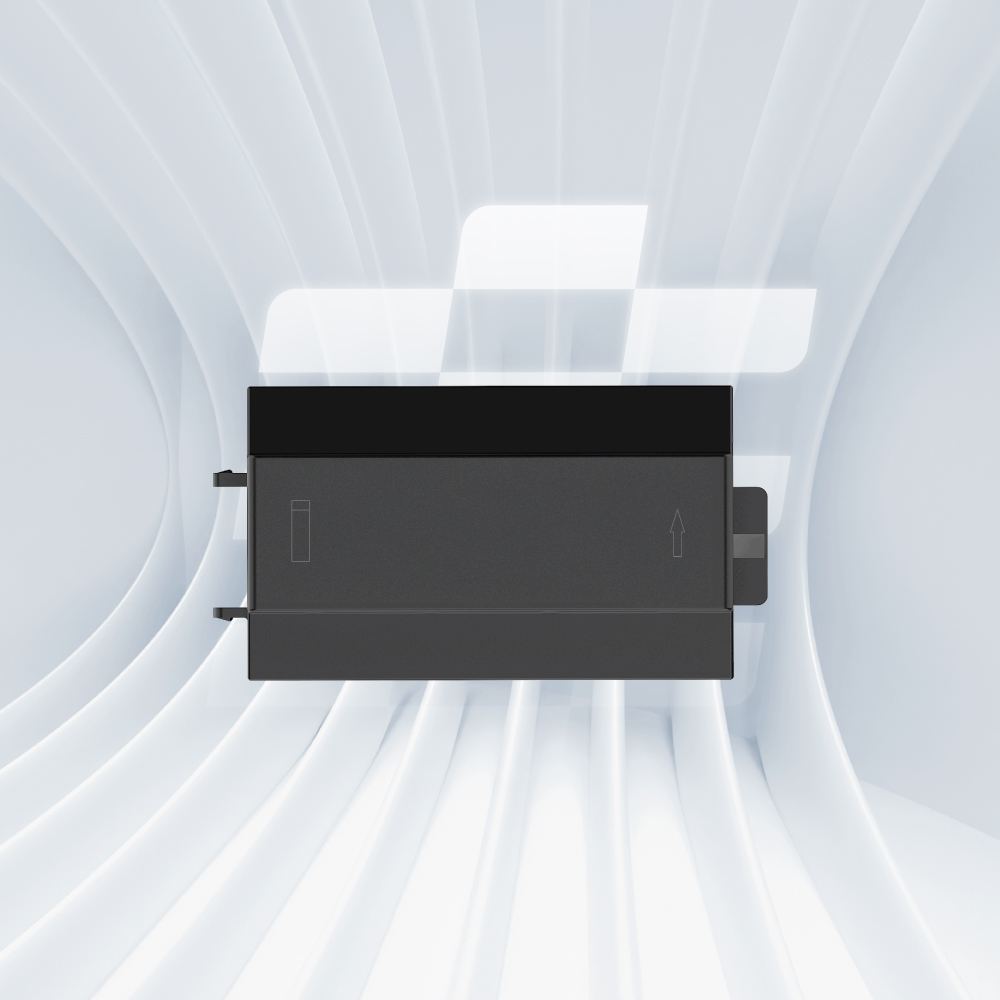

Combiner Box Monitoring Main Controller

Model

FR-DCMG-MMPL

Max. System Voltage

1700Vdc

Trip Function

Shunt Trip Functionality

Power Supply

Busbar (Starting Voltage 450Vdc)

Trip Drive Voltage

24Vdc

Trip Drive Capability

80W * 10mS



Fonrich DC Combiner Box Monitoring System

DC System Monitor supports 1000V/1700V PV systems, real-time monitoring of the string current, bus voltage, bus box temperature, switch status, and alarm output when abnormal data is obtained. The system supports RS485 or industrial wireless data transmission for data transmission.


Combiner Box Monitoring Main Unit Specifications


Product Model

PV Voltage

String/Array Bus Power SupplyCommunication MethodMax Monitoring ChannelsDigital/Open Contact MonitoringTemperature Sensor
FR-DCMG-MKPD1000V-RS4852421
FR-DCMG-MMPU1500V-RS4852442
FR-DCMG-MMPP1500VRS485RS4852442
FR-DCMG-MMPQ1700V-RS4852442
FR-DCMG-MMPS1500V-RS4852442


Combiner Box Monitoring Sensor Specifications


Product ModelArc DetectionRated Current Range
FR-DCMG-HS4A-20A
FR-DCMG-AS4A20A-
FR-DCMG-HS4P-30A
FR-DCMG-HS4Q-40A
FR-DCMG-HS4R-60A
