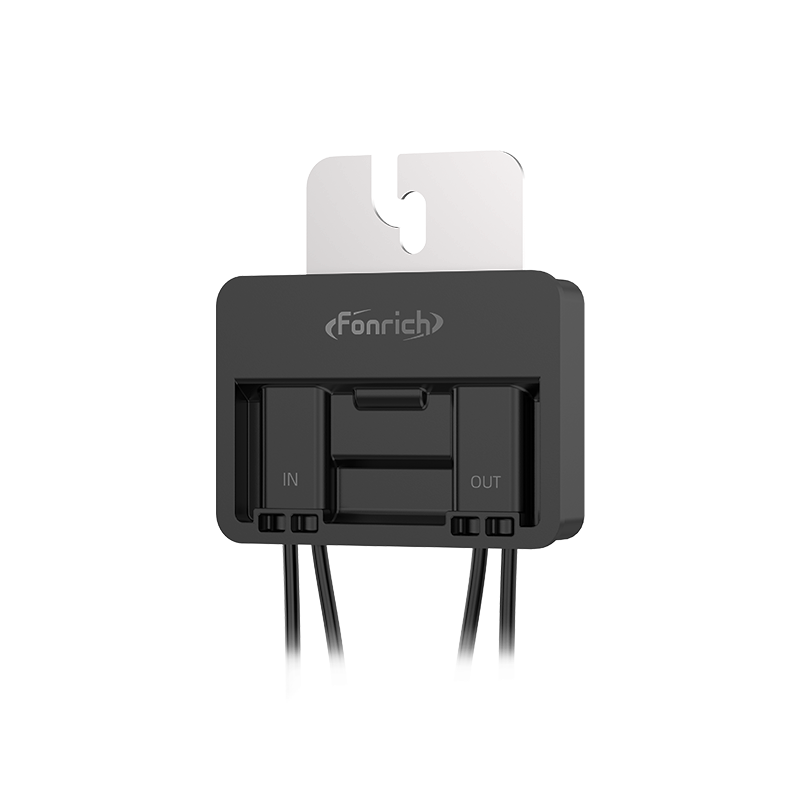

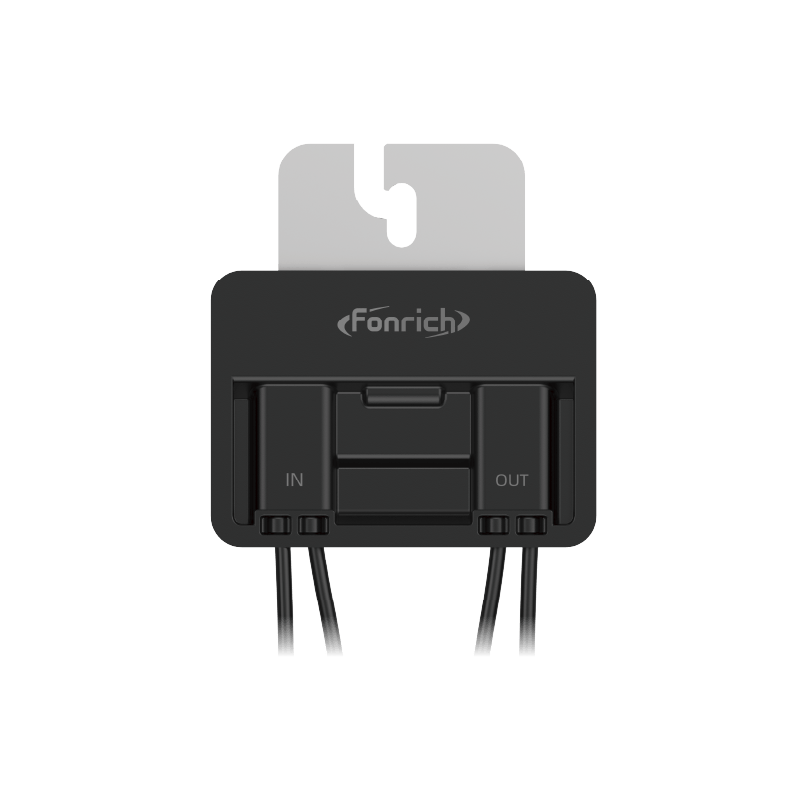

Smart Power Optimizer - Basic

The module-level power optimizer integrates both power optimization and rapid shutdown protection functions. It effectively avoids installation area reduction caused by orientation differences and maximizes the mitigation of power generation loss due to shading and obstruction. It supports data monitoring via the SafeSolar Cloud Platform.

Product Features

Improved Power Generation Efficiency

Solve power generation losses caused by shading,different orientation and mismatching

Module-level Data Monitoring

Snapshots include voltage,current,power,powergeneration,IV working point,temperature,etc.

Automatic/Manual Rapid Shutdown

Automatic or manual shutdown,to ensure maintenanceand fire safety

1600M PLC Communication

Supports super-long communication distance

Inquiry

Product Advantages

Improved Power Generation Efficiency

Automatic/Manual Rapid Shutdown

Supports Remote Data Monitoring

1600m PLC Communication

Technical Parameter

Model

FR-PVMS-C65C/C80H

Number of Module

1 For 1

Max. Input/Output Power

650 W/800 W

Max. Input Voltage

80 Vdc

Dimension

132 × 120 × 25 mm

Safety Compliance

NEC 2017, 2020 & 2023 (690.12) ; IEC 62109-1; EN 62109-1; UL 1741, UL 3741
