Smart Safety Protector (RSD) - TT Series

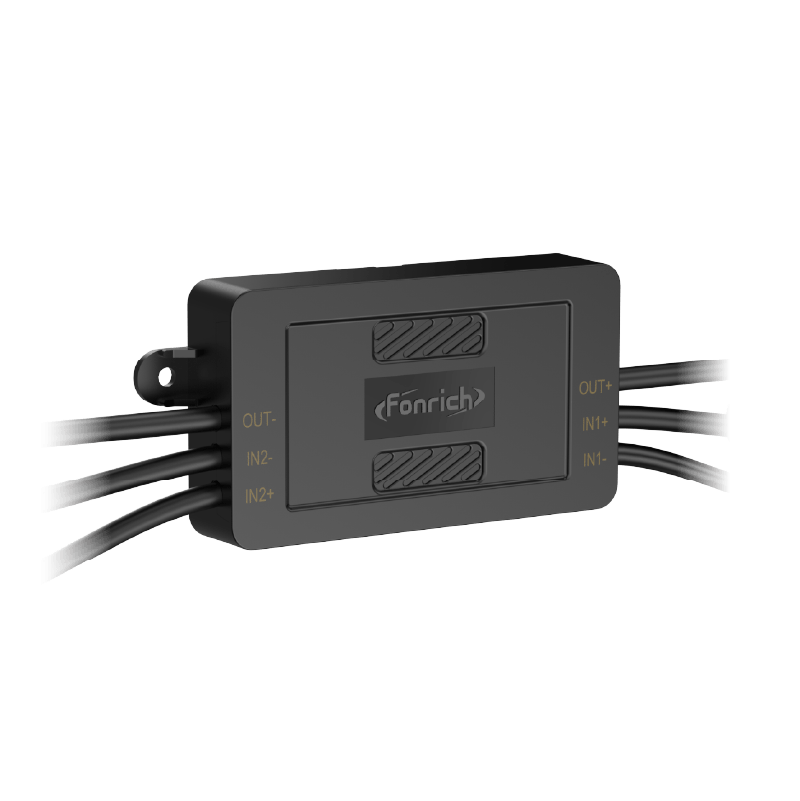

Fonrich Rapid Shutdown FR-PVMS-TT Series offers a versatile solution for dual-module solar setups, combining safety, intelligence, and flexibility. Like other models in the lineup, it meets NEC 2017–2023 and UL standards, includes automatic protection mechanisms, and supports long-distance PLC communication. It is fully compatible with monitoring systems for module-level data visualization, fault detection, and performance analytics.


FR-PVMS-TTCx

Dual 70V inputs, 20–23A current range. Supports parallel connection of two PV modules per unit. Up to 1600m communication loop with PLC transciever accessories.

FR-PVMS-TTQx

The FR-PVMS-TTQx surpasses the FR-PVMS-TTCx with enhanced functionalities: rapid address configuration, next-gen module-level arc protection, and poor plug contact detection.


Product Advantages

Automatic Protection/Manual Rapid Shutdown

Automatic Protection/Manual Rapid Shutdown

Automatic protection or manual shutdown, to ensure maintenance and fire safety

Module-Level Arc Protection

Module-Level Arc Protection

Arc Fault Detection: series, parallel arc. Quickly extinguish the arc, effectively preventing the fire accident

1600m PLC Communication

1600m PLC Communication

Supports super-long communication distance

Supports Remote Data Monitoring

Supports Remote Data Monitoring

Snapshots include voltage, current, power, power generation, IV working

Technical Parameter

Model

FR-PVMS-TTCx / TTQx

Number of Module

1 For 2

Max. Input Operating Voltage

70 V × 2

Dimension

120×68×26 mm

Max. Input/Output Current

20 A ~ 23 A

Safety Compliance

NEC 2017, 2020 & 2023 (690.12) ; UL 1741; UL 3741


FR-PVMS-TT Series Comparison

Rapid Shutdown Technical Specifications and Features Overview


FR-PVMS-TTQx is an excellent choice for cost-sensitive, space-saving deployments that still demand high safety and intelligence. Compared to the TTCx series, the TTQx models also offer rapid address configuration, second-generation module-level arc fault protection, and plug contact failure detection.



Parameter NameFR-PVMS-TTCBFR-PVMS-TTQBFR-PVMS-TTCCFR-PVMS-TTQC
Maximum Input Voltage70 V *270 V *270 V *270 V *2
Number of Modules2222
Max. Input/Output Current20 AMP20 AMP23 AMP23 AMP
Max. Short Circuit Current25 AMP
Arc Detection Feature-Module-level Arc Fault Shutdown-Module-level Arc Fault Shutdown
Safety Compliance All models comply with NEC 2017, 2020 & 2023 (690.12); UL 1741; UL 3741 safety standards
Maximum System Voltage1500 Vdc
IP RatingIP68
Operating Temperature-40 to +85 °C
Communication ProtocolPower Line Commnication (PLC),Max.Cable Loop Length 1600 Meters
Monitoring Platform FeaturesModule-level Asset Management, 2D & 3D Data Display, Multi-module Comparison, Real-time Status, Energy Management, Smart Fault Analysis




Rapid Shutdown Device Wiring Diagram

FR-PVMS-TTCBFR-PVMS-TTQBFR-PVMS-TTCCFR-PVMS-TTQC


Fonrich RSD Wiring Method for Odd/Even Number of Modules

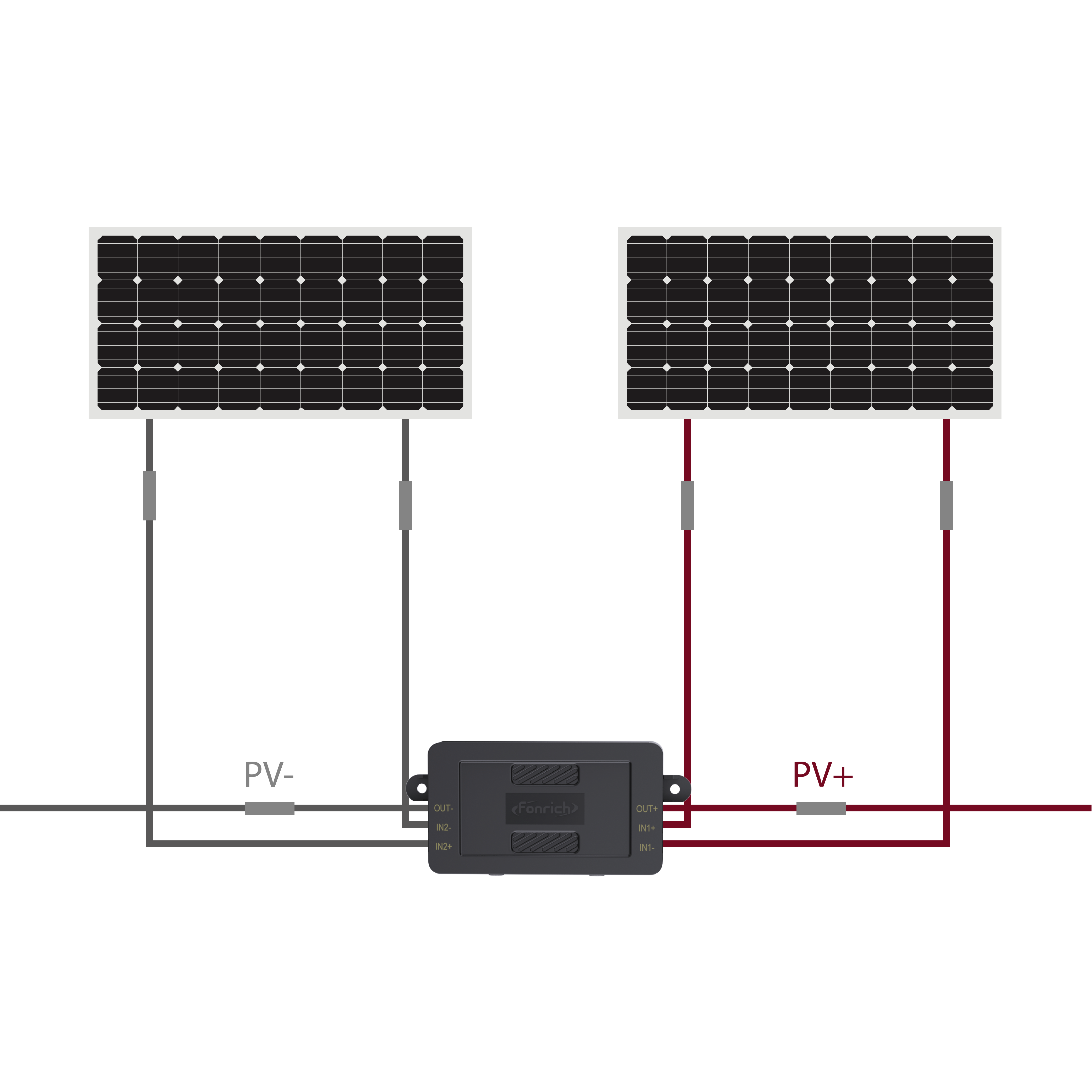

For an odd number of components, use the following wiring method.

FR-PVMS-TT rapid shutdown device wiring diagram

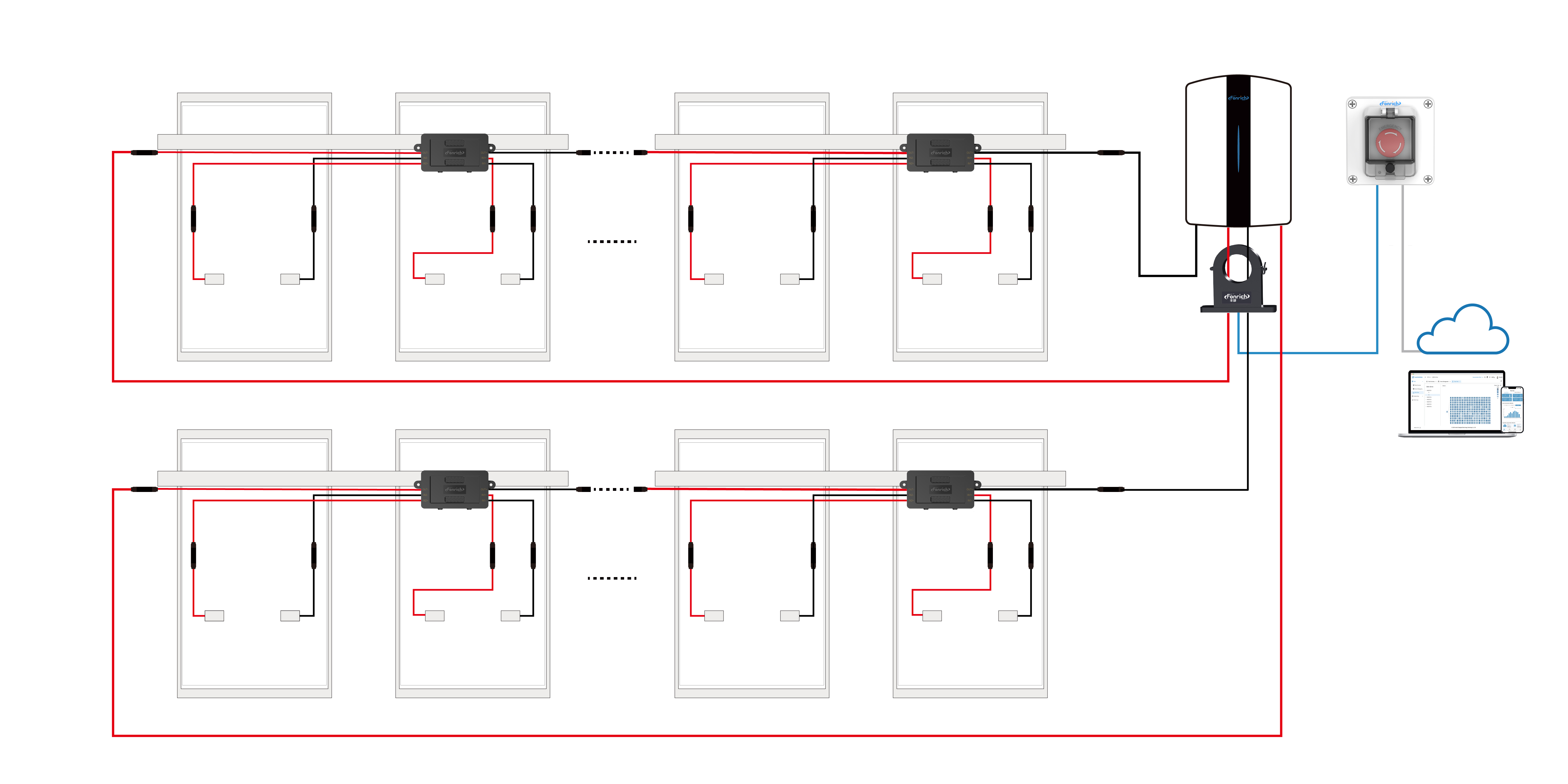

For an even number of modules, use the following wiring method.

FR-PVMS-TT rapid shutdown device wiring diagram
