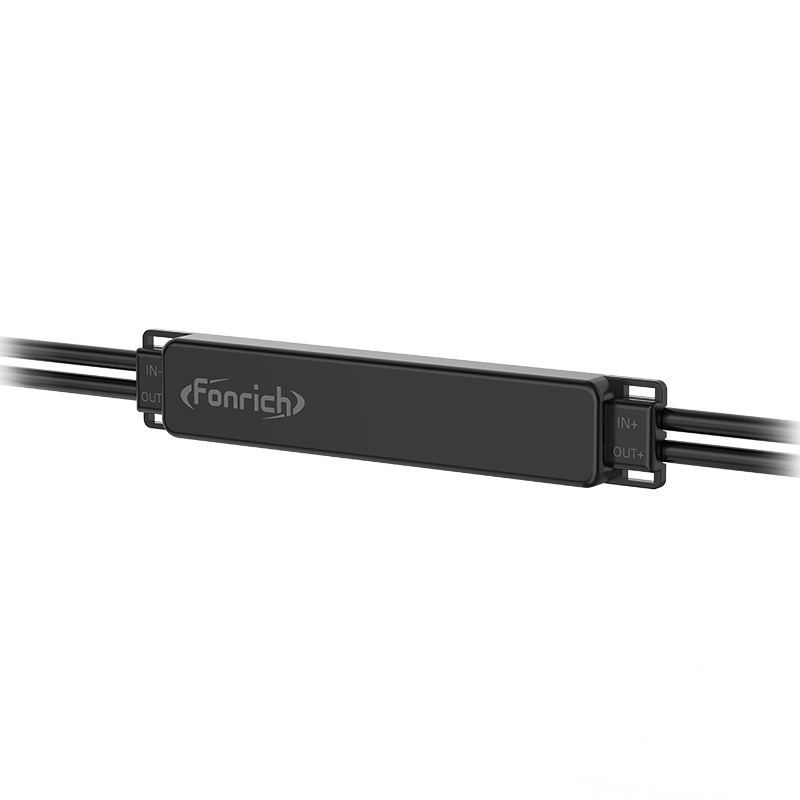

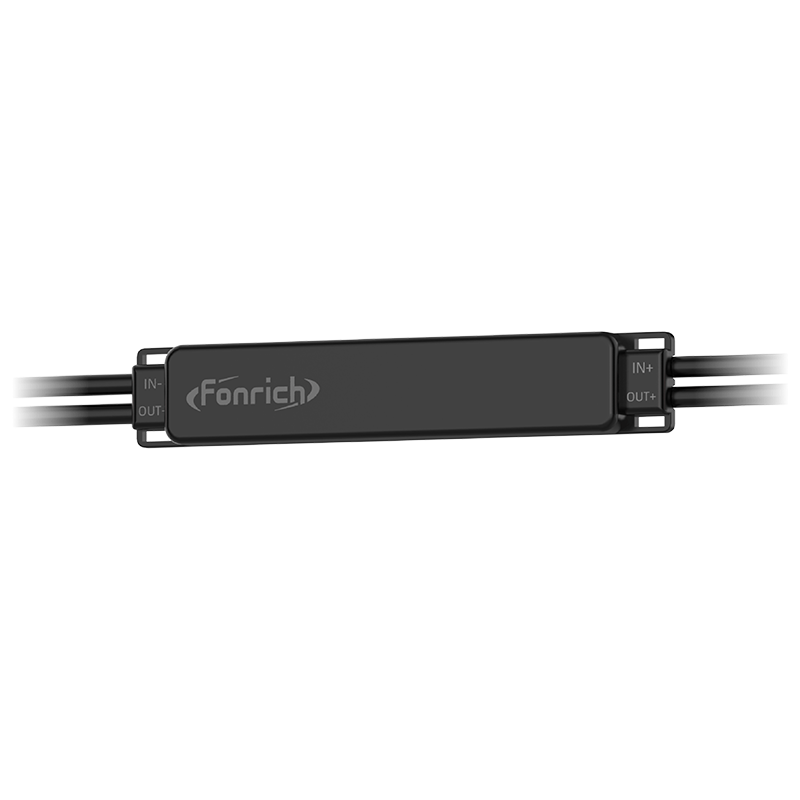

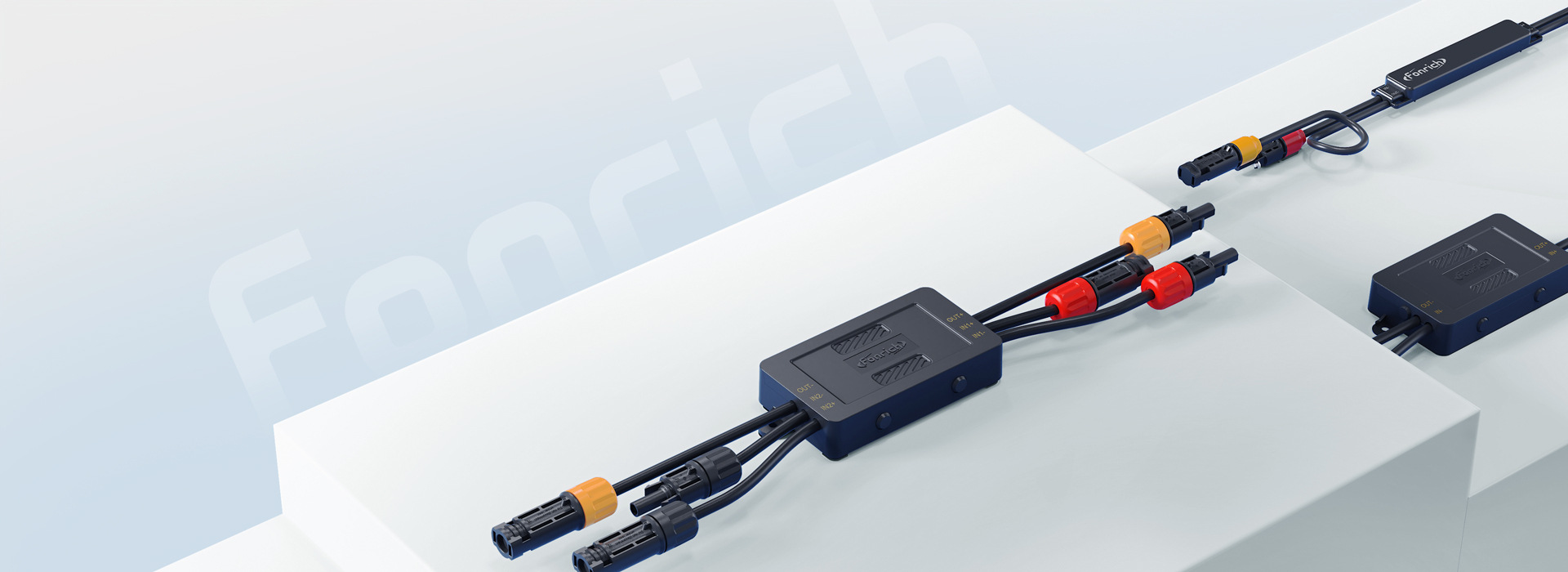

Smart Safety Protector (RSD) - TF Series

Fonrich Safety Protector RSD is a state-of-the-art rapid shutdown device designed for solar PV systems, ensuring compliance with NEC rapid shutdown requirements while delivering module level safety and intelligence. As a leading rapid shutdown initiation device, it provides both automatic protection and manual rapid shutdown capabilities, making it an essential component of any photovoltaic rapid shutdown system.

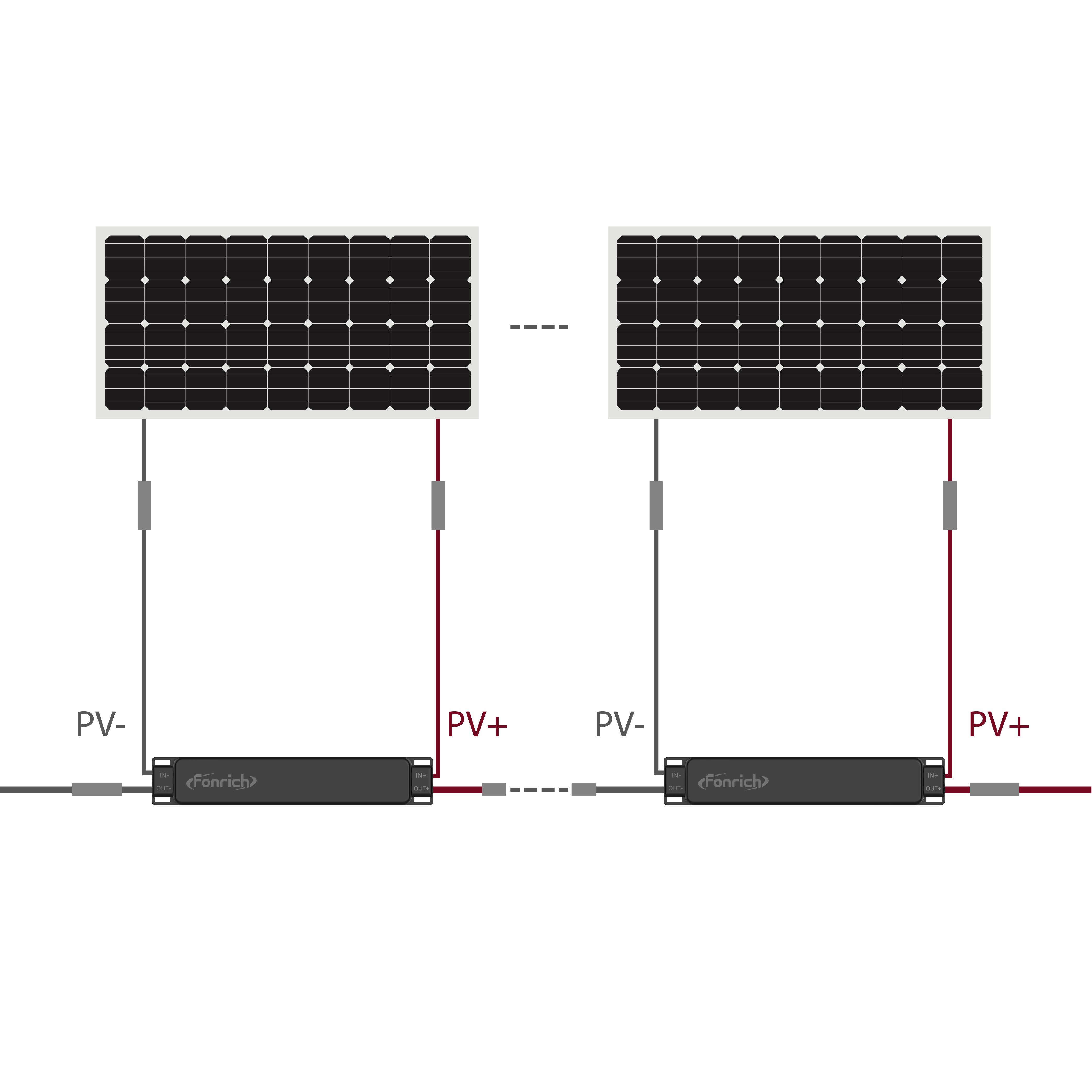

The rapid shutdown initiation device wire size is optimized for seamless integration with various solar rapid shutdown devices, making Fonrich a trusted choice for residential, commercial, and utility-scale rapid shutdown for solar systems. The FR-PVMS-TF series is designed for 1-to-1 connectivity, meaning each Fonrich RSD rapid shutdown device connects to a single PV module.


Product Advantages

Automatic/Manual Rapid Shutdown

Automatic/Manual Rapid Shutdown

Automatic or manual shutdown, to ensure maintenance and fire safety

Module-Level Arc Protection

Module-Level Arc Protection

Arc Fault Detection: series, parallel arc. Quickly extinguish the arc, effectively preventing the fire accident

1600m PLC Communication

1600m PLC Communication

Supports super-long communication distance

Supports Remote Data Monitoring

Supports Remote Data Monitoring

Snapshots include voltage, current, power, power generation, IV working point, temperature, etc.

Technical Parameter

Model

FR-PVMS-TFQx

Number of Module

1 For 1

Max. Input Operating Voltage

60 V

Dimension

165×30×21 mm

Max. Input/Output Current

16 A ~ 20 A

Safety Compliance

NEC 2017, 2020 & 2023 (690.12) ; UL 1741; UL 3741

FR-PVMS-TF Series Comparison

Rapid Shutdown Technical Specifications and Features Overview

The FR-PVMS-TF Series Rapid Shutdown Device is an excellent choice for cost-effectiveness, while still demanding high safety and intelligence.The primary distinction between the TF, TT, and TH series lies in their module connection architecture, offering flexibility for different installation scenarios: The TF series is designed for 1-to-1 connectivity, meaning each RSD rapid shutdown device connects to a single PV module.


The TF series is fully compatible with solar panel rapid shutdown standards and supports module-level rapid shutdown for enhanced safety and operational transparency.


Parameter NameFR-PVMS-TFSBFR-PVMS-TFCBFR-PVMS-TFQCFR-PVMS-TFQH
Maximum Input Voltage60 V60 V60 V80 V
Number of Modules1111
Max. Input/Output Current16 AMP16 AMP20 AMP16 AMP
Max. Short Circuit Current23 AMP
Arc Detection Feature--Module-level Arc Fault ShutdownModule-level Arc Fault Shutdown
Safety Compliance All models comply with NEC 2017, 2020 & 2023 (690.12); UL 1741; UL 3741 safety standards
Maximum System Voltage1500 Vdc
IP RatingIP68
Operating Temperature-40 to +85 °C
Communication ProtocolPower Line Commnication (PLC),Max.Cable Loop Length 1600 Meters
Monitoring Platform Features-Module-level Asset Management, 2D & 3D Data Display, Multi-module Comparison, Real-time Status, Energy Management, Smart Fault Analysis

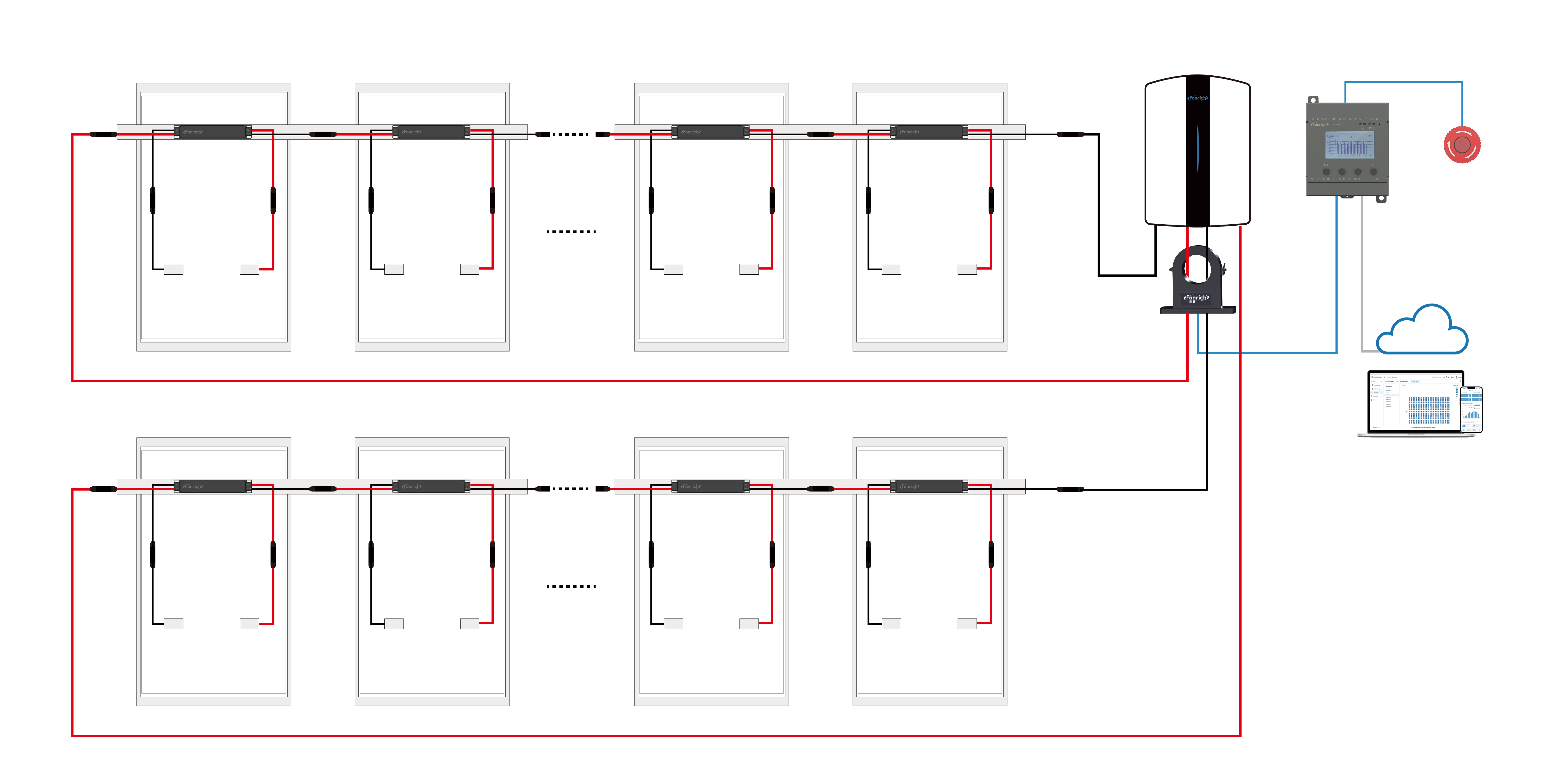

Rapid Shutdown Device Wiring Diagram

FR-PVMS-TFSBFR-PVMS-TFCBFR-PVMS-TFQCFR-PVMS-TFQH

Fonrich RSD + Smart Logger

the wiring diagram overview for Fonrich Rapid Shutdown FR-PVMS-TFxx with Smart Logger is as follows.
