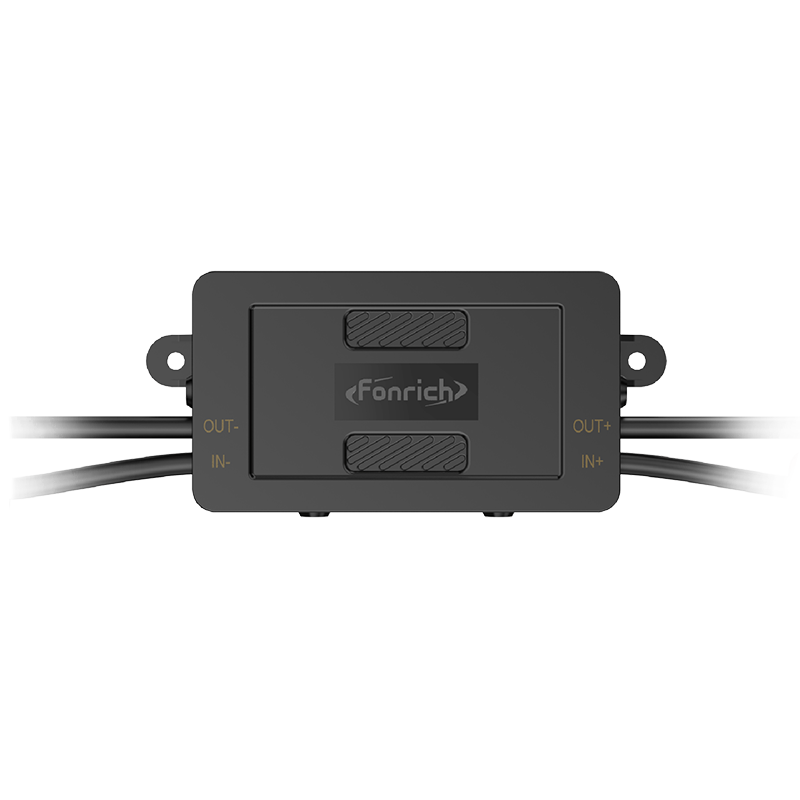

Smart Safety Protector (RSD) - TH Series

Featuring module-level rapid shutdown capabilities, our devices comply with the latest NEC rapid shutdown requirements, including the 2017 NEC rapid shutdown requirements, ensuring enhanced fire safety and maintenance protection. The rapid shutdown initiation device wire size is optimized for seamless integration with various solar rapid shutdown devices, making it ideal for residential, commercial, and industrial installations.


This rapid shutdown device solar architecture ensures that voltage is reduced to safe levels within seconds during emergencies, aligning with solar rapid shutdown requirements and UL 3741 standards. The bidirectional PLC communication enables long-distance control up to 1600 meters, providing reliable rapid shutdown performance even in large-scale deployments.

Product Advantages

Automatic/Manual Rapid Shutdown

Automatic/Manual Rapid Shutdown

Automatic protection or manual shutdown, to ensure maintenance and fire safety

Module-Level Arc Protection

Module-Level Arc Protection

Arc Fault Detection: series, parallel arc. Quickly extinguish the arc, effectively preventing the fire accident

1600m PLC Communication

1600m PLC Communication

Supports super-long communication distance

Supports RemoteData Monitoring

Supports RemoteData Monitoring

Snapshots include voltage, current, power, power generation, IV working

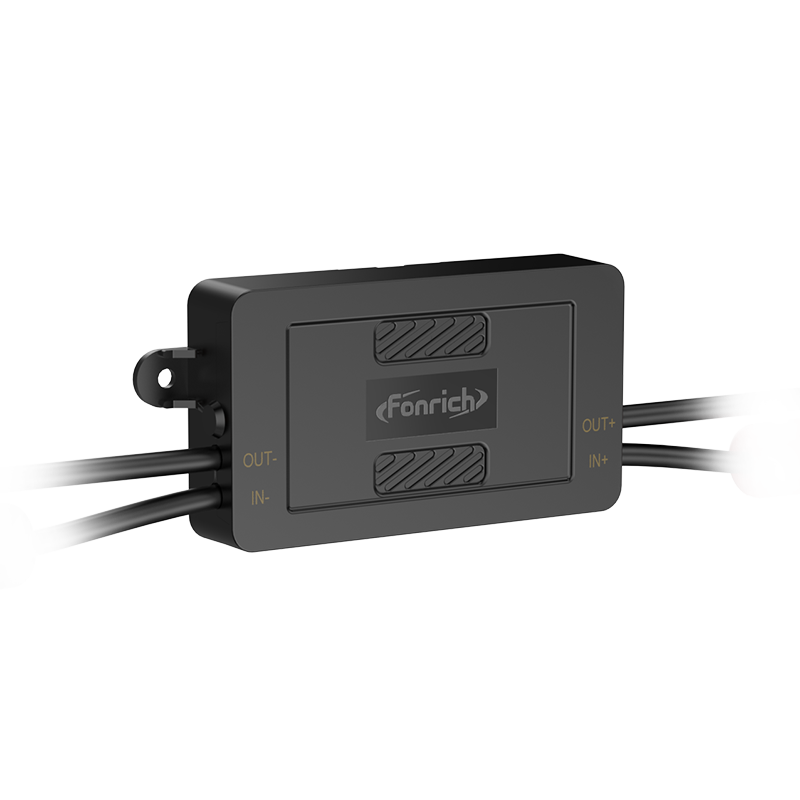

Technical Parameter

Model

FR-PVMS-THCx

Number of Module

1 For 2

Max. Input Operating Voltage

140 V

Dimension

120×68×26 mm

Max. Input/Output Current

20 A ~ 23 A

Safety Compliance

NEC 2017, 2020 & 2023 (690.12) ; UL 1741; UL 3741

FR-PVMS-TH Series Comparison

Rapid Shutdown Technical Specifications and Features Overview

FR-PVMS-THQx is an excellent choice for cost-sensitive, space-saving deployments that still demand high safety and intelligence. Compared to the THCx series, the THQx models also offer rapid address configuration, second-generation module-level arc fault protection, and plug contact failure detection.


Parameter NameFR-PVMS-THCBFR-PVMS-THQBFR-PVMS-THCCFR-PVMS-THQC
Maximum Input Voltage140 V140 V140 V140 V
Number of Modules2222
Max. Input/Output Current20 AMP20 AMP23 AMP23 AMP
Max. Short Circuit Current25 AMP
Arc Detection Feature-Module-level Arc Fault Shutdown-Module-level Arc Fault Shutdown
Safety Compliance All models comply with NEC 2017, 2020 & 2023 (690.12); UL 1741; UL 3741 safety standards
Maximum System Voltage1500 Vdc
IP RatingIP68
Operating Temperature-40 to +85 °C
Communication ProtocolPower Line Commnication (PLC),Max.Cable Loop Length 1600 Meters
Monitoring Platform FeaturesModule-level Asset Management, 2D & 3D Data Display, Multi-module Comparison, Real-time Status, Energy Management, Smart Fault Analysis



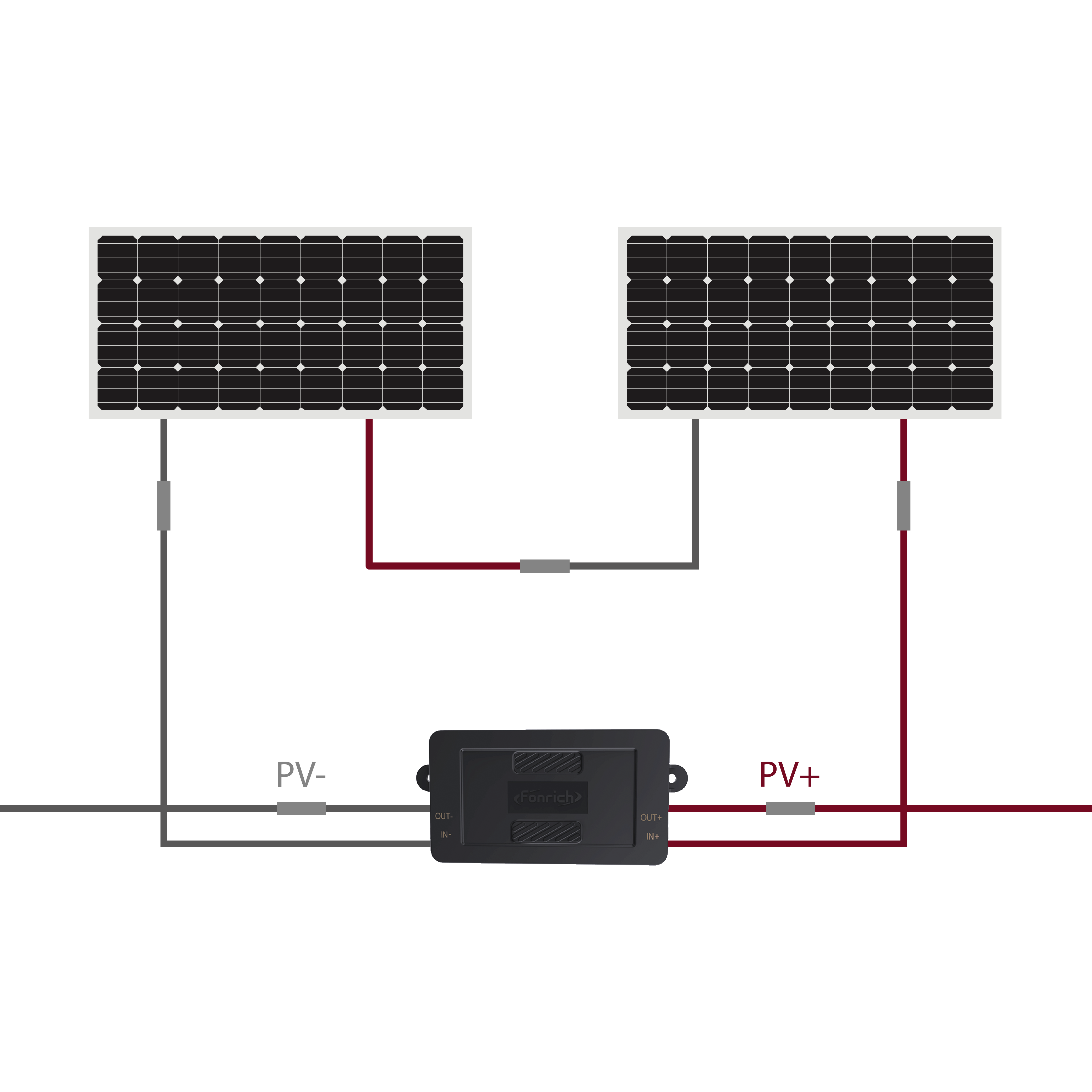

Rapid Shutdown Device Wiring Diagram

FR-PVMS-THCBFR-PVMS-THQBFR-PVMS-THCCFR-PVMS-THQC

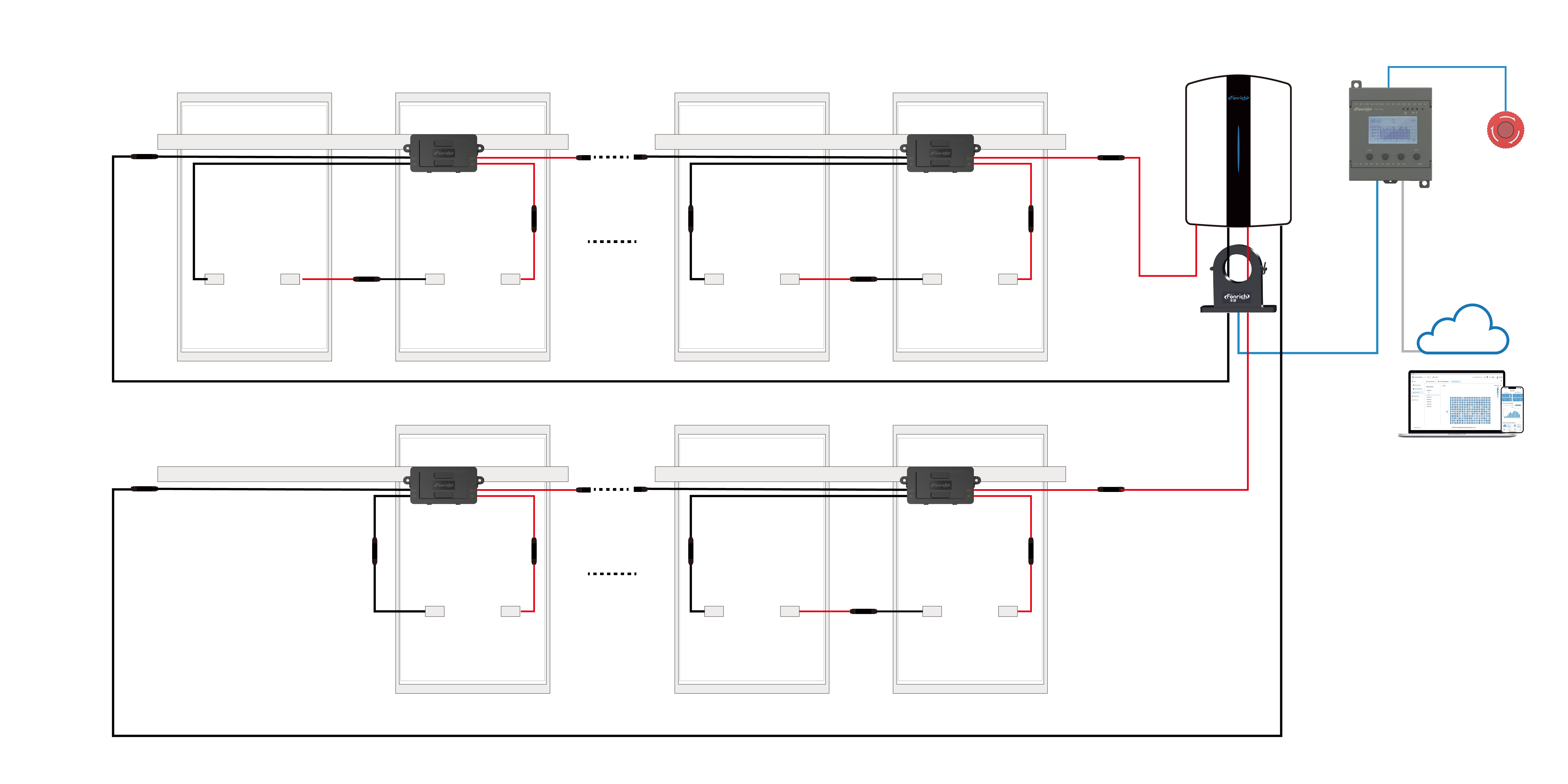

Fonrich RSD + Smart Logger

When the number of PV modules is odd, the wiring diagram overview for Fonrich Rapid Shutdown with Smart Logger is as follows.

Smart Safety Protector (RSD) - TH Series(pic1)

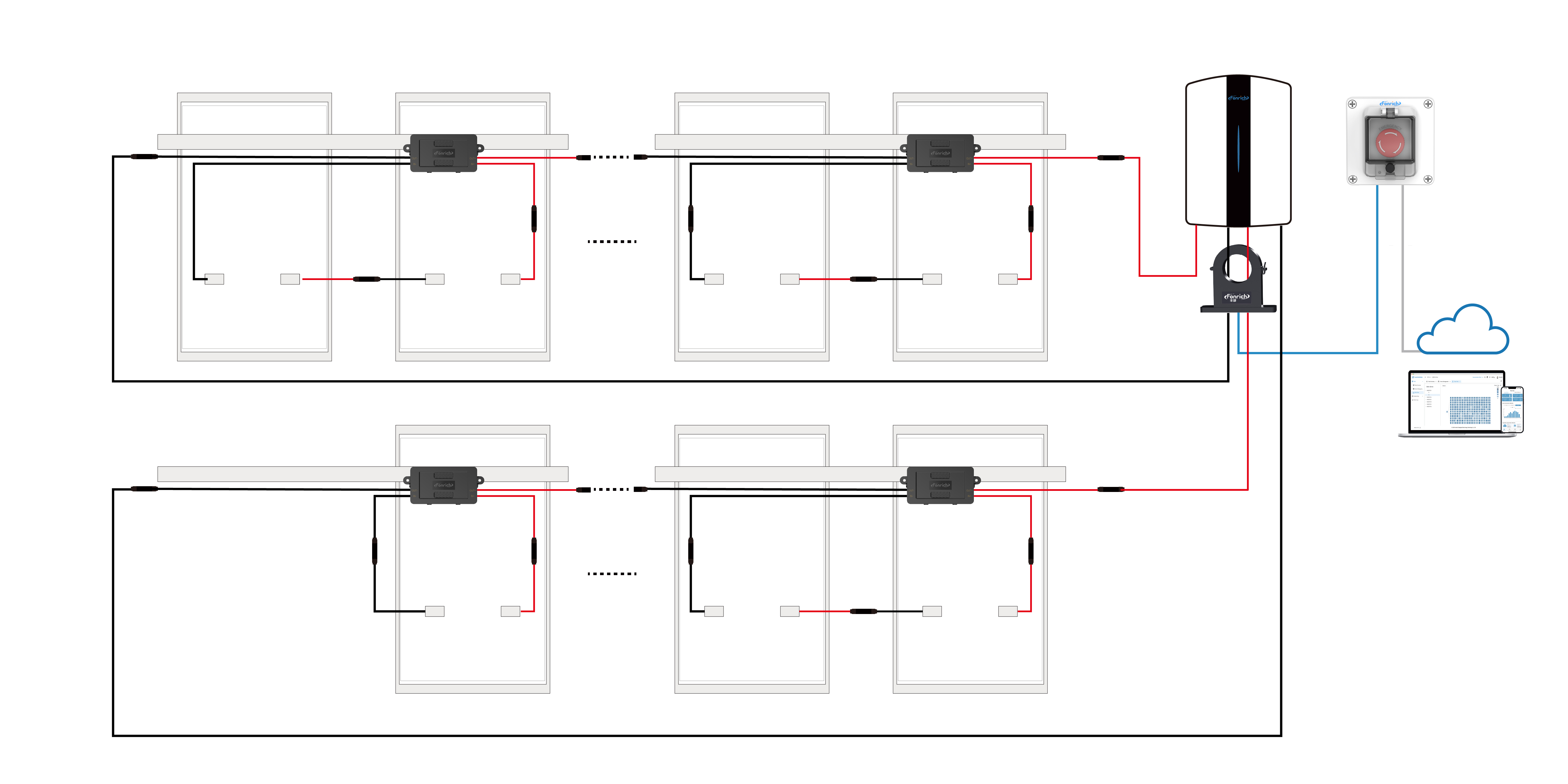

Fonrich RSD + Emergency Switch Box

When the number of PV modules is odd, the wiring diagram overview for Fonrich  Fonrich Rapid Shutdown with Emergency Switch Box is as follows.

Smart Safety Protector (RSD) - TH Series(pic2)
